Description
HEAVY DUTY LINEAR ACTUATOR FOR RESIDENTIAL/ COMMERCIAL USE
DSP motion control for smooth operation, plus, separate closing speeds for dual gate installations.

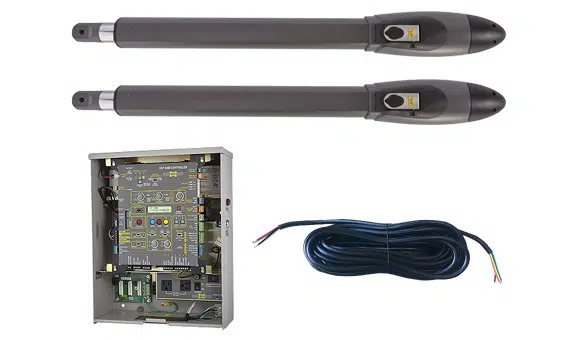

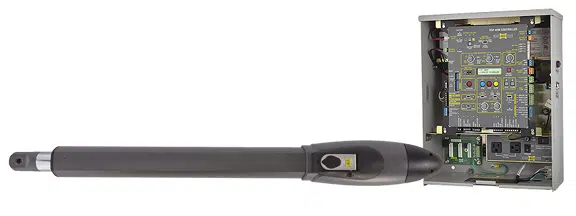

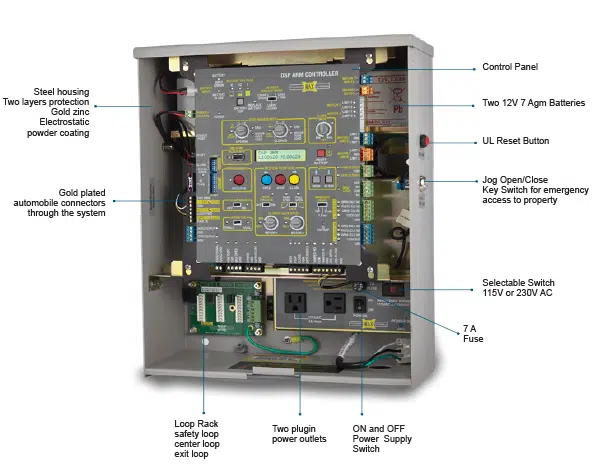

The Max Arm is a long throw linear actuator that will move up to 1000 lbs gates. The smooth motion control and separate closing speeds for dual gate installations truly sets this machine apart from it’s competition. The 15 gauge gold zinc, powder coated metal control box with standard loop rack and toroid power supply protects the many user friendly features of the DSP Arm Controller board. A window display for instant diagnostics, opening and closing emergency reversal controls, and easy logical control of gate motion and safety parameters are just a few aspects of many that makes Maximum Controls’ residential/commercial linear actuator a gate operator you should consider.
Max Arm Mechanical Specifications
-
Gate opening capacity: 1600 lbs/8ft; 1200 lbs/12ft; 800 lbs/16ft; 600 lbs/18ft
-
Shipping weight of Actuator: Max Arm (27 lbs)
-
Shipping weight of AC Control Box (38 lbs)
-
Stainless steel output shaft
-
Direct gear drive (no internal chains, belts, or pulleys)
-
Mechanical and electrical gate release functions
-
Corrosion protection: powder coated aluminum housing
-
High cycles at extreme temperature ranges. No overheating
-
Intelligent ramp-up and ramp-down for smooth gate operation
Max Arm Electrical Specifications
Specifications listed in blue are unique to to Max Arm
- 24 Volt DC motor
- Two independently adjustable closing speed controls with 16 positions each
- Switchable 115/230 voltage selection
- Adaptive DSP motor control for advanced motion control
- Real time performance analyzer and event log (OBD PORT and Black Box)
- Magic Box enables low voltage wiring capabilities for remote power up to 1000 ft
- On-board switch for solar mode enables 18 milliamp idle in sleep mode
- Gold contact input connections and automobile grade connectors
- -4F to 165F (-20C to +74C) operational range including battery backup without a heater
- Robust lightning protection, up to 20KVolts and 10KAmps on all inputs and outputs (35 channels) including loop detector input connections
- Two selectable 16 position safety obstruction sensors, auto adaptable to gate weight and size, for independent control of open and close cycles
- Independent closing speeds for primary and secondary
- Dual motor overcurrent safety shut off for additional protection
- Two 7amp hour batteries provides 500 cycles in case of power failure with three modes of battery backup, open once, leave open or leave closed
- On-board three button station
- On-board UL reset button
Max Arm Security Specifications
- High traffic intuitive loop management system for exceptional security
- Advanced security features with built-in audible and remote alarms
- Magnetic lock control relay outputs with selectable delay times
- Tamper alert relay output triggers “on” if gate is forced open
- Audible alarm if gate is tampered with or ERD is triggered for heightened security
- Steel cover with lock protects against intruders and vandalism
- Gate disable feature disables all inputs with exception of the fire department and Max Open input for increased security
- Built in transaction buffer
- Gate status outputs for gate monitoring
- Key activated jog fuction for emergency OPEN/CLOSE function
- Advanced anti-tailgate feature prevents unwanted intrusion
Max Arm Safety Specifications
- UL 325/991 compliant Class I, II, III, and IV. CSA approved
- Built in advanced entrapment protection and alarm output
- Built in gate-in-motion alarm for industrial applications
MAX ARM Specifications
Values are from the Maximum Controls installation manual for the MAX Arm and MAX Super Arm 2300 (Version 12b).
| Gate type | Vehicular swing gate only; pedestrians must use a separate entrance |
|---|---|
| Mounting options | Pull-open or push-open; single leaf or bi-parting pair |
| Duty cycle | Continuous on AC input power |
| Thrust | 4,000 N nominal, 4,500 N peak |

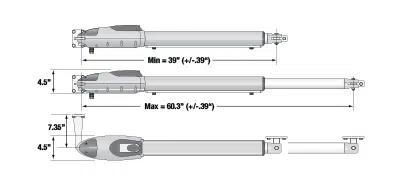

| Stroke | 21.2 in maximum |
| Input power | Switchable at the control box: 115 V AC at 6 A or 230 V AC at 2 A, single phase |
| Actuator power | 24 V DC; 144 W maximum absorbed power; 7.5 A maximum operating current for up to 10 s |
| UL 325 classes | Class I, II, III and IV; certified to CAN/CSA C22.2 No. 247 |
| Entrapment protection | Built-in Type A (ERD sensor), plus monitored inputs for Type B1 photocells (N.C. or 10K) and Type B2 sensing edges; sensing edges must be the monitored 10K normally closed type |
| External sensors required | Monitored external sensors for each entrapment area, in both the opening and closing directions wherever an entrapment or pinch point exists; with no external device installed, the operator will not function |
| Not in the box | Entrapment sensors, sold separately; flexible conduit for the operator wire |
| Recommended sensors | The manual’s list includes the Omron E3K-R10K4-10R, EMX IRB-MON and EMX IRB-RET photocells, the EMX Wireless Edge Link WEL-200T/WEL-200R and the Miller Edge R-Band Wireless Edge Unit (RB-G-RX10 and RB-TX10) |
On a residential or commercial vehicular swing gate in Riverside or Corona, plan the mounting before the arm goes up: the manual requires a support bar across the full gate length for the front bracket, never bare pickets, and the arm runs from the DSP Arm Controller in the MAX AC control box.
