HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

Security device that moves 2200 lb. gates. Competitively priced.

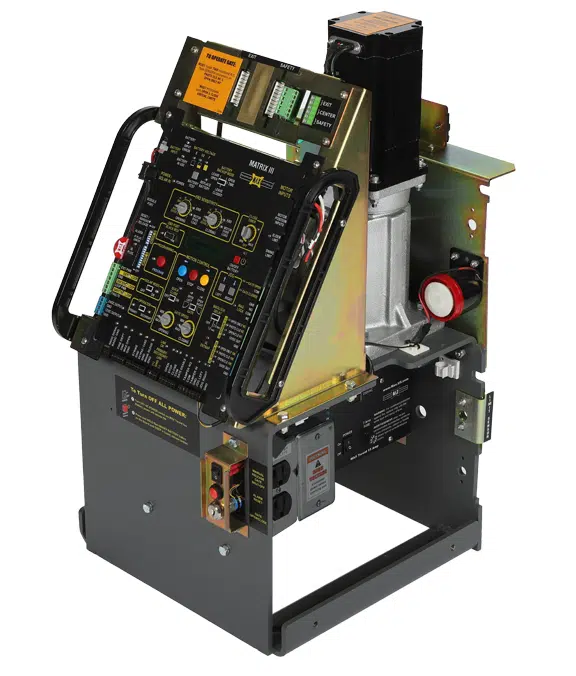

Max 2200 PRO sliding gate operators are robotic DSP controlled machines that are perfect for use in high traffic gated communities, commercial/industrial applications and public storage facilities. They are capable of moving 2200 lb. gates to a maximum gate length of 50 ft. While competitively priced, they offer the same reliable state machine design electronics, 24V brushless DC motor, robust features and ease of installation as Maximum Controls’ higher end models. The Max 2200 PRO’s attractive cover and access doors are made of a quarter inch UV protected, high impact polyurethane material that offer years of non-fading and structural stability. It comes standard with a lockable cover for easy access that allows for quick servicing. Max 2200 PRO sliding gate operators are also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most popular gate operators in the industry.

Specifications listed in blue are unique to Max 2200 PRO

  • Max 2200 PRO slide gate operator dimensions (14.5”W x 19” D x 25.5” H) 7.5” chain height
  • Heavy duty direct drive gear box size 60, 30:1 gear ratio
  • Max 2200 PRO capacity 2200lbs /60ft long gate speed 12″ per second for class I, II, III and IV
  • Independent opening and closing speed control for primary and secondary
  • Direct gear drive (no internal chains, belts, or pulleys)
  • Corrosion protection gold zinc coating and electrostatic powder coating applied
  • Continuous Cycle at extreme temperature range. No overheating possibility
  • Intelligent ramp-up and ramp-down gate speed control for smooth operation
  • Selectable short or long ramp-down
  • Shipping weight of Max Slide Gate Operator: Max 2200 PRO (158 lbs)
  • Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of total power loss)

Max 2200 PRO Security Specifications

Specifications listed in blue are unique to Max 2200 PRO

  • High traffic intuitive loop managements system for better security
  • Advanced security features with built-in audible and remote alarms
  • Magnetic lock control relay outputs with selectable delay times
  • Tamper alert relay outputs triggers “on” if gate is forced open
  • Audible alarm if gate is tampered with or ERD is triggered for higher security
  • Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
  • Lockable cover with key lock release to prevent intruders and vandals
  • Built-in transaction buffer for high security 8000 events as well as error messaging file
  • Gate status outputs for gate monitoring
  • Advanced anti-tailgate features to provide higher security
  • Optional chain drop sensor detects unauthorized chain drops when using magnets option
  • Fire department compliance allows gate to auto-open upon loss of AC power or battery depletion

Specifications listed in blue are unique to Max 2200 PRO

  • Electronic release: Jog switch at front cover sliding window
  • Brushless DC motor equivalent to 1 1/4 HP AC motor
  • Programmable gate speed controls, 16 selectable speeds
  • Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
  • Modular system design for ease of service
  • Switchable 115/230 voltage selection
  • Adaptive DSP control for advanced brushless DC motion control
  • Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
  • LCD display that reports past and recent errors
  • Low voltage wiring capabilities for remote power up 500 feet (no battery needed)
  • Solar ready battery module with built-in advanced solar regulator
  • Intelligent power management system with energy saver mode
  • Built in current limited 12vdc and 24vdc outputs
  • Gold contact input connections and automobile grade connectors
  • Selectable open timer 0 to 60 seconds with timer off option
  • -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater
  • Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 Channels) including loop detector input connections
  • Motor overcurrent safety shut off for additional protection
  • This operator includes a battery backup module providing on average 200 cycles in case of power failure
  • Three modes of selectable battery backup functions

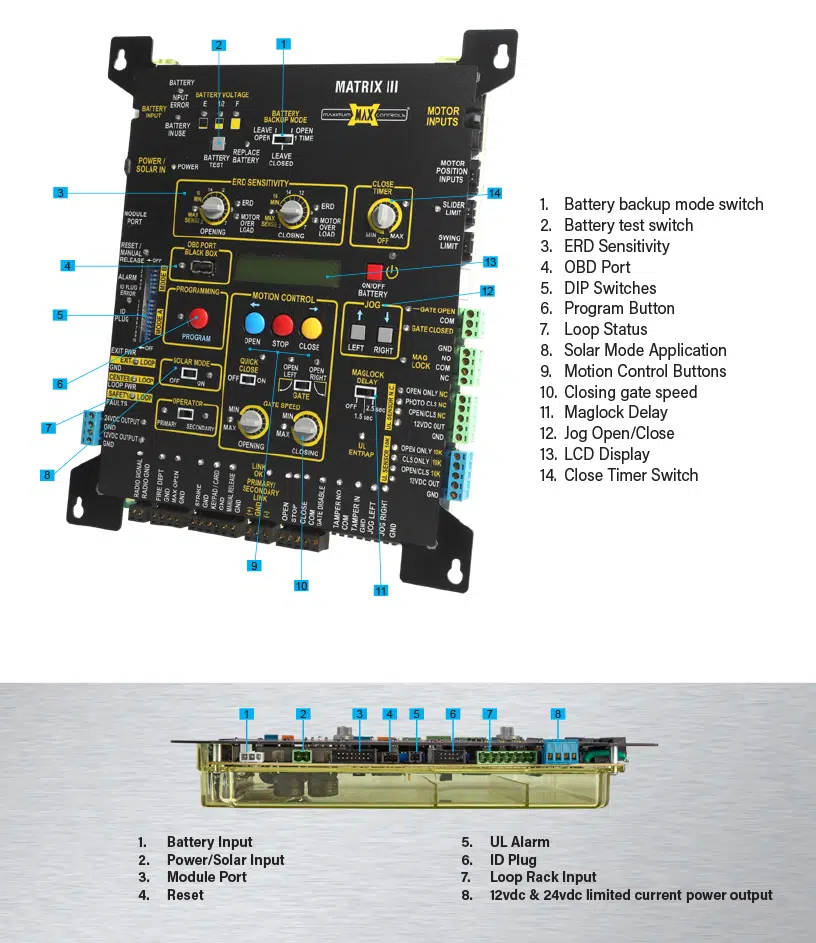

  • State machine design electronics with ultra-fast microprocessor
  • On board three button station

Specifications listed in blue are unique to Max 2200 PRO

  • Adaptive obstruction sensor for much better gate safety system. 16 selectable sensitivity settings
  • UL 325/991 compliant Class I, II, III, and IV. CSA approved
  • Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions
  • Built-in advanced entrapment protection and alarm output
  • Built-in gate-in-motion alarm for industrial applications
  • Optional normally close or 10k safety inputs (most safety inputs in the industry)
