Description

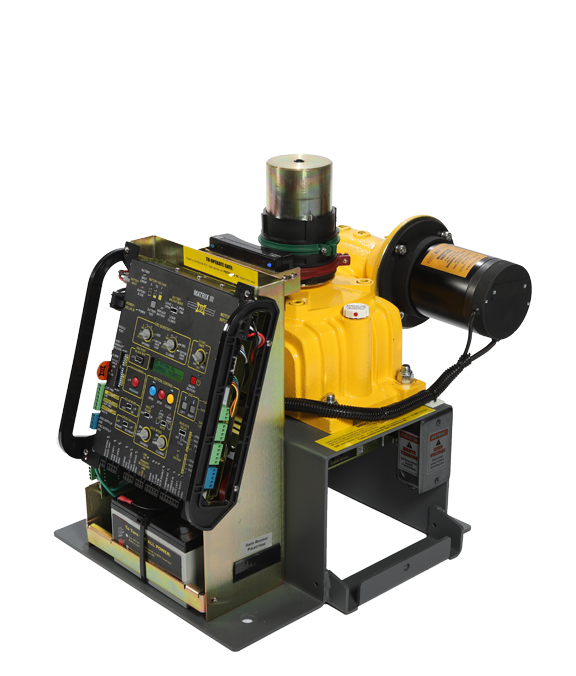

The Max Megatron FAST PRO is capable of opening gates up to 1000 lbs./15 ft. long (sold as dual only) Ultra-fast speed direct drive (no chains, belts, or pulleys) opens gate 90 degrees from 6 to 10 seconds based on weight of the gate and selectable speed control. The Megatron FAST PRO ships with AGM 7 amp hour battery back up enabling over 400 cycles in case of power failure. This operator is also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most common gate operators in the industry.

Specifications listed in blue are unique to Max Megatron FAST PRO

  • Max Megatron FAST PRO dimensions (18.3 W x 24.5 D x 21.3 H) 18.5 arm height
  • Heavy duty gear box 500:1 Size 80 for Megatron FAST PRO
  • Megatron FAST PRO capacity 1000lbs/15ft (sold as dual only) – gate speed 6 to 10 seconds

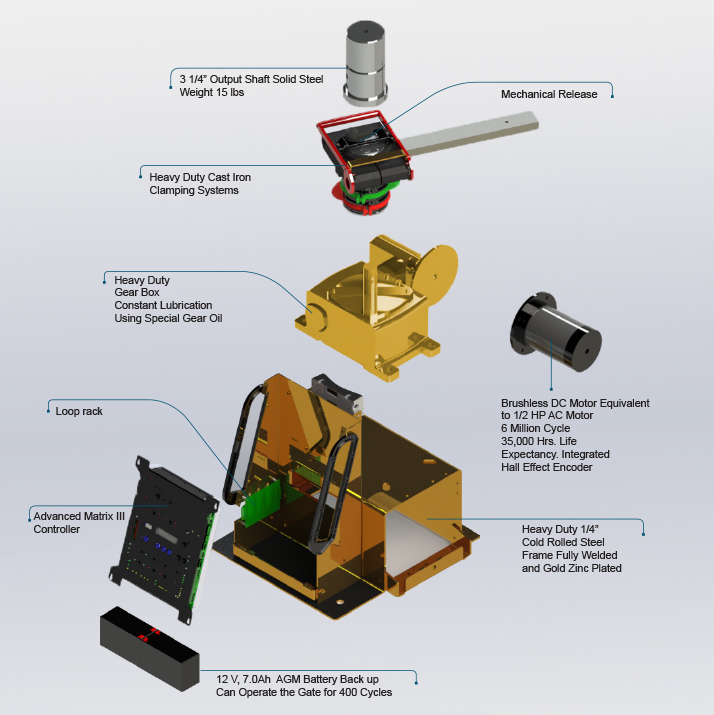

  • Large output shaft 3 1/4” diameter solid steel with cast iron clamping system for all Megatron
  • Direct gear drive (no chains, belts, or pulleys)
  • Mechanical and electrical manual gate release functions
  • Corrosion protection gold zinc coating
  • Continuous cycle at extreme temperature range. No overheating possibility
  • Intelligent ramp-up and ramp-down gate speed control for smooth operation
  • Shipping weight of Max Megatron FAST PRO (220 lbs)

Specifications listed in blue are unique to to Max Megatron FAST PRO

  • Brushless DC motor equivalent to 1/2 HP AC motor
  • Programmable gate speed controls, 16 selectable speeds
  • Automatic gate position reset system
  • Gate sync feature provides automatic gate movement synchronization
  • Modular system design for ease of service
  • Switchable 115/230V AC selection
  • Adaptive DSP control for advanced brushless DC motion control
  • Real time performance analyzer and event log (OBD PORT and Black Box)
  • Low voltage wiring capabilities for remote power up 1000 feet (no battery needed)
  • Solar ready battery module with built-in advanced solar regulator
  • Intelligent power management system with energy saver mode
  • Built-in current limited 12vdc and 24vdc outputs
  • Gold contact input connections and automobile grade connectors
  • Selectable open timer 0 to 60 seconds with timer off option
  • -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater
  • Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 Channels) including loop detector input connections
  • Tunable 16 position safety obstruction sensor, auto adaptable to gate weight and size
  • Dual motor overcurrent safety shut off for additional protection
  • This operator has battery backup providing 400 cycles in case of power failure
  • Three modes of selectable battery backup functions
  • State machine design electronics with ultra-fast microprocessor

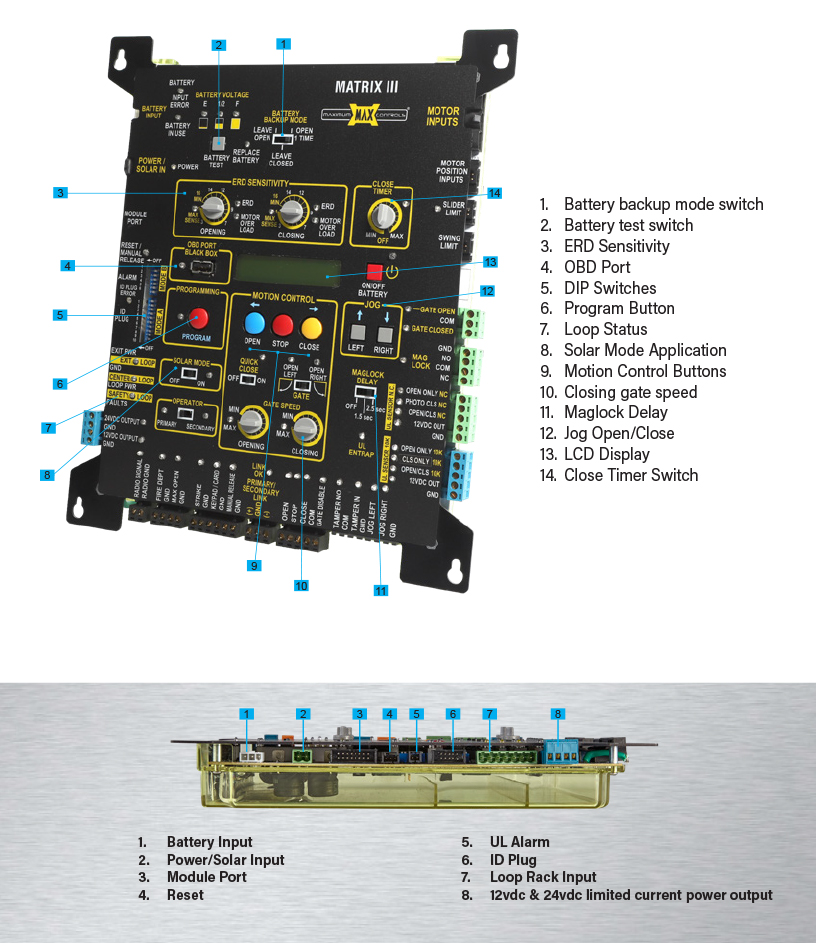

  • On board three button station

Specifications listed in blue are unique to Max Megatron FAST PRO

  • High traffic intuitive loop management system for better security
  • Advanced security features with built-in audible and remote alarms
  • Magnetic lock control relay outputs with selectable delay times
  • Tamper alert relay outputs triggered “on” if gate is forced open
  • Audible alarm if gate is tampered with or ERD is triggered for higher security
  • Gate partial open recorder
  • Lockable cover with key lock release to prevent intruders and vandalism
  • Gate disable feature, disables all inputs with exception of the fire department input for high security
  • Builtin transaction buffer for high security
  • Gate status outputs for gate monitoring
  • Direct motor control of jog OPEN/CLOSE for manually moving a gate in case of emergency
  • Advanced anti-tailgate features to provide higher security
  • No need for magnetic lock with the robust output shaft and clamp design of the Max Megatron FAST PRO

Specifications listed in blue are unique to to Max Megatron FAST HP

  • Adaptive obstruction sensor for much better gate safety system. 16 selectable sensitivity settings
  • UL 325/991 compliant Class I, II, III, and IV. CSA approved
  • Pinch arm protection design
  • Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions
  • Vehicle hit protection technology protects the gate operator from collision damage caused by automobile impact, avoiding costly repairs
  • Built-in advanced entrapment protection and alarm output
  • Built-in gate in motion alarm for industrial applications
