CONTROL PANEL FOR MAX ARM
OR MAX SUPER ARM 2300
Stylish metal box with logical design makes the Max AC Control Box outshine our competitors. Dare to compare.

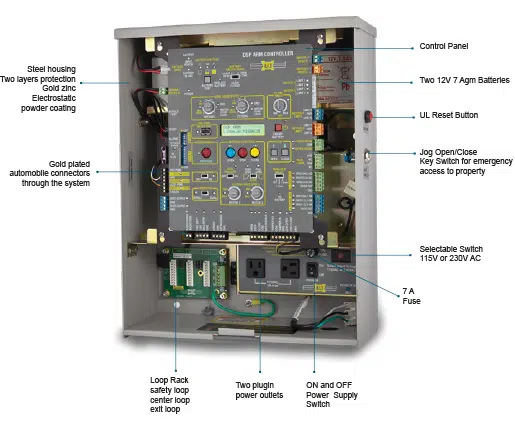

The AC Control Box features rugged metal construction that is gold zinc plated and powder coated. Each AC Control Box comes with an exterior UL reset button, a convenient jog key switch for emergency access or egress, a 10 amp power supply with two 115 VAC accessory outlets, two 7 amp hour batteries conveniently located behind the control panel, a loop rack and much more. A lockable steel cover finishes off this handsome design.
A convenient LCD display keeps you informed. Functional data and error messages are visible when an accessory failure or function is present. This makes troubleshooting and function monitoring a breeze.
These many features can be explored in our downloadable installation manual available by clicking button below.
_________________________

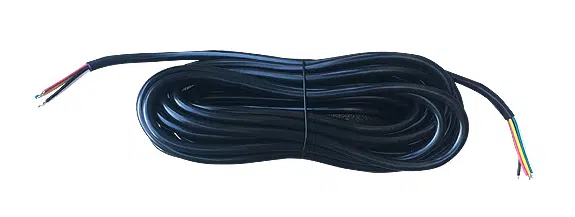

CABLE FOR PRIMARY SECONDARY OPERATION
High quality 5 conductor 16-gauge wire for secondary communication.
- Underground cable.
- 5 conductor.
- 16 Awg.
- Stranded.
MAX AC CONTROL BOX & MAX 40 FT. CABLE Specifications
Values below come from the Maximum Controls MAX Arm and MAX Super Arm 2300 manual (Version 12b), both arms’ spec sheets and the manufacturer’s kit listing.
| Drives | MAX Arm or MAX Super Arm 2300, single or bi-parting |
|---|---|
| Gate type | Vehicular swing gate only |
| Duty cycle | Continuous on AC input power |
| Input power | Switchable: 115 V AC at 6 A or 230 V AC at 2 A, single phase; 7 A fuse |
| Power output | 24 V DC |
| Accessory outlets | Two 115 V AC outlets, labeled 3 A max |
| Batteries | Two 12 V, 7 Ah AGM; about 450 cycles from a full charge |
| UL 325 classes | Class I, II, III and IV |
| Entrapment protection | Built-in Type A (ERD sensor); N.C. or 10K inputs for Type B1 photocells and Type B2 edges, monitored when used |
| Operating temperature | -4°F to 158°F (-20°C to 70°C) |
| Enclosure | Steel housing, gold zinc plus electrostatic powder coat; 13.5 in wide, 17 in high, 5.75 in deep; 38 lb shipping weight |
| Loop rack | Positions for safety, center and exit loop detectors |
| Cable | 40 ft, 5-conductor, 16 AWG stranded underground cable for primary/secondary operation |
| Not included | Couplings, flexible conduit and mounting hardware; entrapment sensors, sold separately |
| Recommended sensors | Omron E3K-R10K4-10R, EMX IRB-MON and EMX IRB-RET photocells; EMX WEL-200T/WEL-200R wireless edge link |
| Grounding | Minimum 12 AWG, 600 V insulated wire to a ground point within 10 ft |
Mount the box as close as possible to the arm, clear of sprinkler spray, and keep low-voltage wiring out of the high-voltage conduit. For a bi-parting gate on two MAX Super Arm 2300 actuators, the manual runs the second arm back to this box through its own underground conduit; the 40 ft cable is made for that primary/secondary link.
