HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR
Security device that moves 1500 lb. gates. Competitively priced.

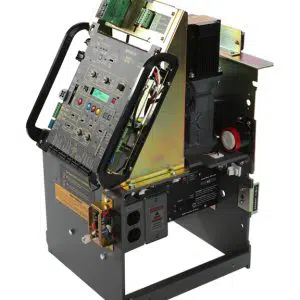

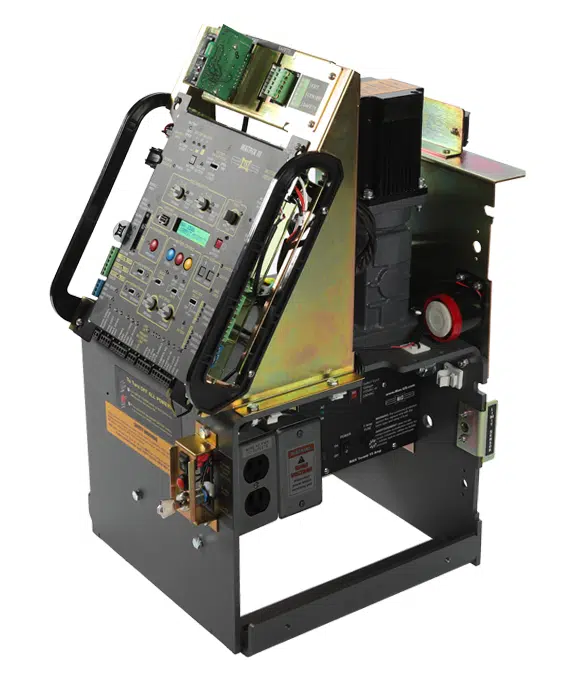

Max 1500 PRO sliding gate operators are robotic DSP controlled machines that are perfect for use in high traffic gated communities, commercial/industrial applications and public storage facilities. They are capable of moving 1500 lb. gates to a maximum gate length of 25 ft. While competitively priced, they offer the same reliable state machine design electronics, 24V brushless DC motor, robust features and ease of installation as Maximum Controls’ higher end models. The Max 1500 PRO’s attractive cover and access doors are made of a quarter inch UV protected, high impact polyurethane material that offer years of non-fading and structural stability. It comes standard with a lockable cover for easy access that allows for quick servicing. Max 1500 PRO sliding gate operators are also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most popular gate operators in the industry.
Max 1500 PRO Mechanical Specifications
MAX 1500 PRO Ratings from the Installation Guide

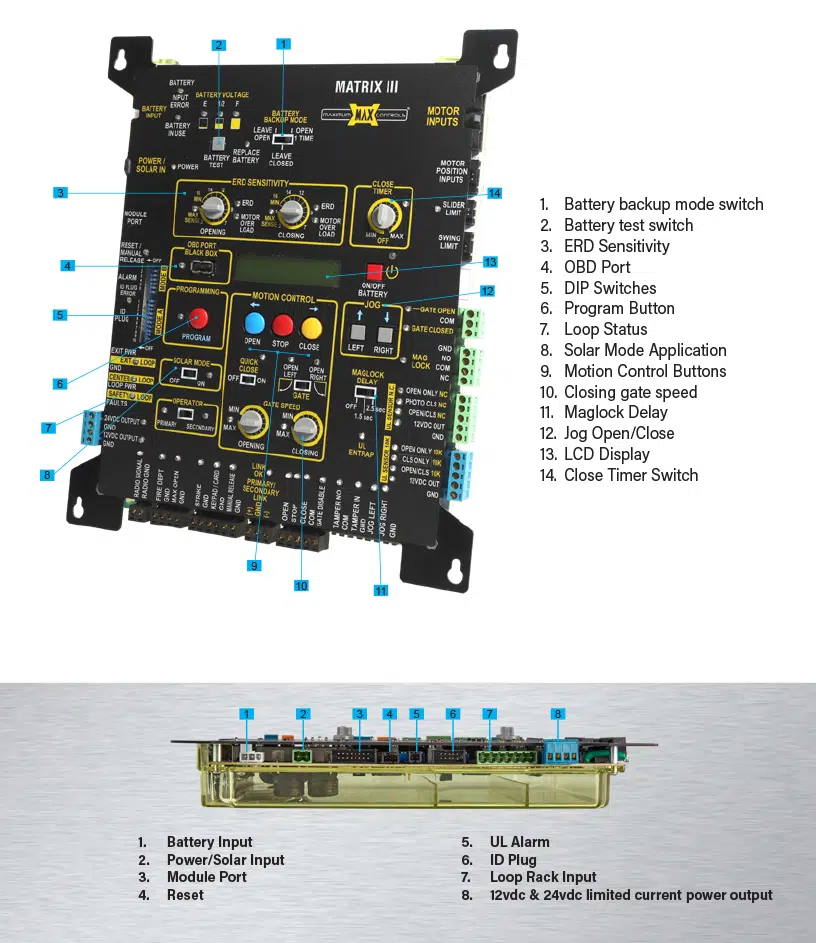

These values come from the manufacturer’s Matrix III installation guide, version 7E.4. Gate limits, duty cycle and UL classes match the description above; the other rows add electrical, safety and packaging details.
| Specification | MAX 1500 PRO |
|---|---|
| Gate limits | 1,500 lb level gate; 25 ft maximum length |
| Duty cycle on AC power | Continuous cycles per hour |
| Input power | Switchable: 115 VAC at 6 A or 230 VAC at 2 A, single phase |
| Motor | 1/2 HP, 24 VDC brushless |
| Battery back-up | Approximately 100 cycles on two fully charged 7 Amp/Hr batteries; varies with gate weight, length, condition, temperature and starting charge |
| Operating temperature | -4°F to 158°F (-20°C to 70°C) |
| UL 325 usage classes | Class I, II, III and IV under the 2018 standard; the guide’s cover also states CAN/CSA C22.2 No. 247 certification |
| Entrapment protection | Built-in Type A (ERD sensor), plus inputs for normally closed (N.C.) and 10K Type B1 photocells and Type B2 sensing edges. Two sensors, one per direction of travel, must be connected or the operator will not function. |
| Supplied with the operator | 25 ft of #40 nickel-plated chain; an additional single gang box with outlet, for service use only |
| Sold separately | Magnet limit sensors |
| Documented accessories | Photocells: Omron E3K-R10K4, EMX IRB-MON, IRB-RET and IRB-RET2. Wireless edge links: EMX WEL-200, Miller RBAND, Transmitter Solutions iGaze RE. Also plug-in loop detectors and the MAX solar pack. |
The Class I to IV listing spans a site of one to four single-family dwellings through a guarded industrial gate, but for vehicles only: the guide says you must give pedestrians a separate access opening. If your gate exceeds 1,500 lb or 25 ft in length, it falls outside this model; the same guide rates the MAX 2200 PRO for 2,200 lb and 50 ft.
