Description

FAIL SAFE HIGH TRAFFIC COMMERCIAL
BRUSHLESS DC SLIDING GATE OPERATOR

Fail safe, back drivable manual operation upon loss of AC power or battery depletion.

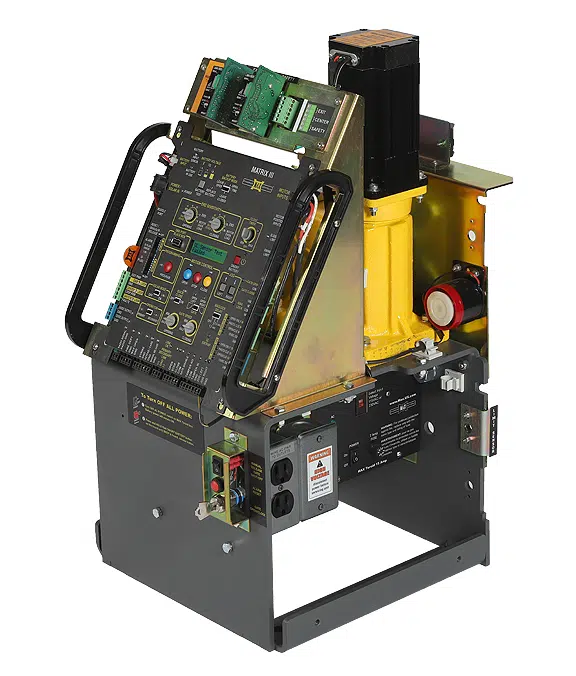

The Max 1700 FS PRO sliding gate operator is a robotic DSP controlled machine that is perfect for use in high traffic gated communities, commercial/industrial applications and public storage facilities. It is capable of moving 1700 lb. gates to a maximum gate length of 40 ft.

FEATURES

  • Local keyed manual disconnect – allows gate to be pushed back.
  • Remote keyed manual disconnect – allows gate to be pushed back from outside the property by keypad or any dry contact command.
  • Dynamic braking system, in closed position, will fight back if unauthorized push back is attempted.
  • Audible alarm and relay out trigger when unauthorized entry (push back) is attempted.
  • 25 ft #40 Nickel Plated Chain & Brackets.
  • Programmable virtual limit.
  • Optional magnetic limits sensors available.
  • Patent No. US 9,406,207 B2

Specifications listed in blue are unique to Max 1700 FS PRO

  • Max 1700 FS PRO Slide Gate Operator dimensions (14.5” W x 19” D x 25.5” H) 7.5” chain height
  • Heavy duty direct drive gear box Size 60, 20: 1 gear ratio
  • Max 1700 FS PRO capacity 1700lbs /40ft long gate speed 12” per second for class I and II, adjustable dip switch configuration for UL class III and IV making the operator speed up to 19” per second
  • Independent Opening and Closing speed control for primary and secondary
  • Direct gear drive (no internal chains, belts, or pulleys)
  • Corrosion protection gold zinc coating and electrostatic powder coating applied
  • Continuous cycle at extreme temperature ranges—overheating not possible
  • Intelligent ramp-up and ramp-down for smooth operation
  • Selectable short or long ramp-down
  • Shipping weight of Max Slide Gate Operator: Max 1700 FS PRO (156 lbs)
  • Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of a total power loss)

Specifications listed in blue are unique to Max 1700 FS PRO

  • Mechanical Release: Local switch, keypad, or any dry contact relay will release dynamic braking, allowing gate to be pushed back in case of emergency
  • Brushless DC motor equivalent to 1 1/4 HP AC motor
  • Programmable gate speed controls, 16 selectable speeds
  • Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
  • Modular system design for ease of service
  • Switchable 115/230 voltage selection

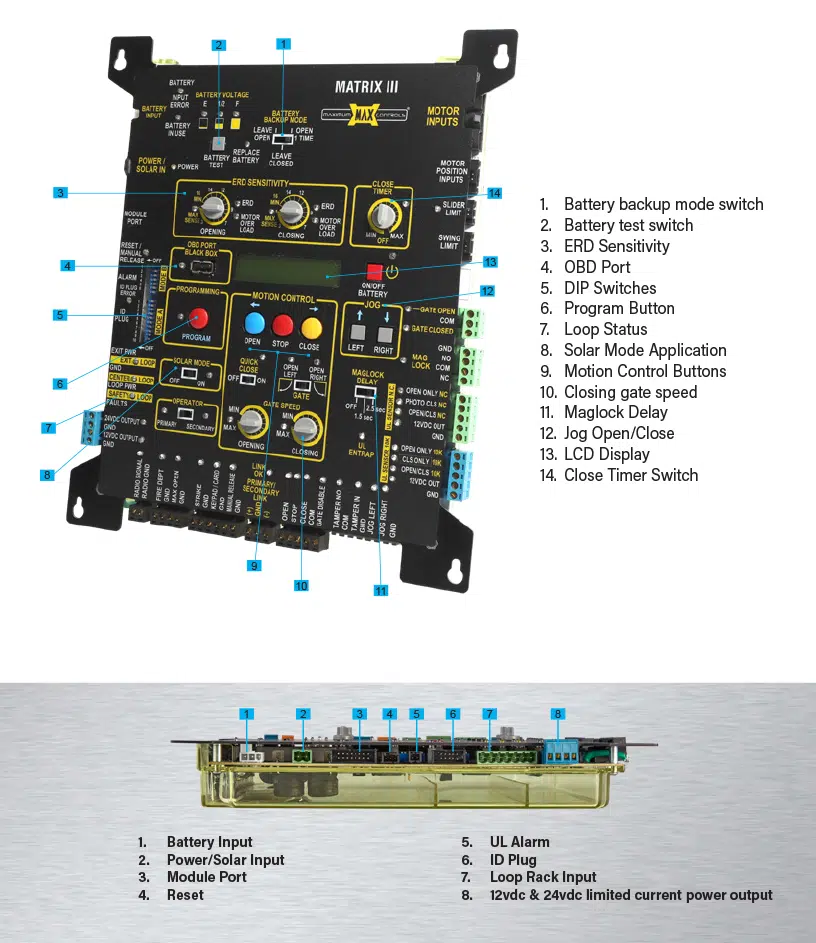

  • Adaptive DSP control for advanced brushless DC motion control
  • Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
  • LCD display that report past and recent errors
  • Low voltage wiring capabilities for remote power up 500 ft (no battery needed)
  • ‘Solar Ready’ battery module with built-in advanced solar regulator
  • Intelligent power management system with energy saver mode
  • Built-in 12vdc and 24vdc outputs
  • Gold contact input connections and automobile grade connectors
  • Selectable open timer 0 to 60 seconds with ‘timer off’ option
  • -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater

Specifications listed in blue are unique to Max 1700 FS PRO

  • High traffic intuitive loop management system for better security
  • Advanced security features with built-in audible and remote alarms
  • Magnetic lock control relay outputs with selectable delay times
  • Tamper-alert relay output triggers “on” if gate is forced open
  • Audible alarm if gate is tampered with or ERD is triggered for higher security
  • Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
  • Lockable cover with key lock release to prevent intruders and vandalism
  • Built-in transaction buffer for high security 8000 events as well as error messaging file
  • Gate status outputs for gate monitoring
  • Advanced anti-tailgate feature provides higher security
  • Optional Chain Drop Sensor detects unauthorized chain drops when using magnets option
  • Fire Department Compliance allows gate to auto-open upon loss of AC power or battery depletion

Specifications listed in blue are unique to Max 1700 FS PRO

  • Adaptive obstruction sensor for much better gate safety system. 16 selectable sensitivity settings
  • UL 325/991 compliant Class I, II, III, and IV. CSA approved
  • Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions.
  • Built-in advanced entrapment protection and alarm output
  • Built-in gate-in-motion alarm for industrial applications
  • Optional normally close or 10K safety inputs (most safety inputs in the industry)
